FXR90 Ultra-Rugged Fixed RFID Readers

FXR90 ultra-rugged fixed RFID reader, built-in antenna ultra-rugged fixed RFID reader

Designed with industrial-grade IP65/67 sealing and an extended operating temperature range, the Zebra FXR90 operates reliably even in harsh environments. With built-in wireless technologies such as Wi-Fi 6, Bluetooth®, 5G, GPS and CBRS, and an optional built-in RFID antenna, the FXR90 is easy to use, deploy and manage on any network.

Ultra-sensitive UHF RFID performance : read rates up to more than 1,300 tags per second. Provides built-in RFID antenna and 4-port and 8-port antenna port configuration options.

Supports PoE and PoE+ : PoE (802.3af) or PoE+ (802.3at).

Simplified deployment : Built-in wireless technology makes it easy to set up and manage a group of card readers. Integrated Bluetooth 5.3 wireless connects to virtually any Android™ or Windows device.

Flexible networking : With built-in 5G, GPS and CBRS, you have more flexibility than ever before to set up the most suitable type of wireless network.

IoT Connector : With IoT Connector, you can collect data from cloud-enabled devices in a simple and consistent way.

Rugged and durable : IP65/67 sealed, blocking moisture, dust or extreme high and low temperature environments.

Contact Us

Entity properties
Dimensions (LxWxD)Including mounting bracket: 33.5 X 25.4 X 5.5 (cm)
Without mounting bracket: 29.1 X 29.1 X 25.4 X 7.08 (cm)
Weight- With mounting bracket: 2.70 (kg)
- Without mounting bracket: 2.50 (kg)
- Built-in antenna model including mounting bracket: 3.07 (kg)
- Built-in antenna model without mounting bracket: 2.86 (kg)
Shell MaterialDie-cast aluminum (reader body)
Polycarbonate/polybutylene terephthalate blend (radome)
RFID
RFID EngineZebra Proprietary Radio Technology
Maximum RFID Read Rate1,300+ tags/sec
Maximum RFID Reading Range - (built-in antenna model)Built-in antenna model: 30.5 meters (This reading distance is for specific tags and settings)
Nominal RFID Reading Range - (built-in antenna model)Built-in antenna model: 16.7 meters
Nominal RFID Writing/Encoding Range - (built-in antenna model)Built-in antenna model: 4.5 meters
Frequency (UHF)902-928 MHz / 865-868 MHz
Antenna Port Configuration- Integrated antenna with 4 external antenna ports
- 4 external RP-TNC antenna ports

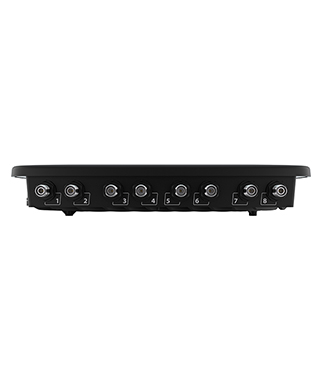

- 8 external RP-TNC antenna ports
Built-in Antenna Gain7dBi
Maximum Receiving Sensitivity-92 dBm
Air ProtocolsISO 18000-6C (EPC Class 1 Gen2V2)
Connect
Internet ConnectionGigabit Ethernet, WLAN, WPAN, WWAN 5G, CBRS
Communication2 USB host, USB client
General Purpose I/O4 inputs/4 outputs
Power Supply- POE (802.3af)
- POE+ (802.3at) +24V DC
- (UL Approved)
Wireless network
RadioIEEE 802.11ax/ac/a/b/g/n 2X2, MU-MIMO, IPv4
Data Rate- 5 GHz PHY data rates up to 1.2 Gbps
- GHz PHY data rates up to 458 Mbps
Security and EncryptionWEP/TKIP/AES CCMP/AES GCMP/WAPI/AES CMAC/AES/CCMP
Wireless wide area network data communications
Radio Frequency Band- 5G/FR1: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79
- 4G: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32 / 34/ 38/ 39/ 40/ 41/ 42/ 43/ 46/ 48/ 66/ 71
- 3G: B1/B2/B4/B5/B8/B19
GPSGPS/GLONASS/BDS/Galileo/QZSS/GNSS
BluetoothBluetooth version: Class 1, Bluetooth v5.3 with BLE
Pairing Options- SSP
- NFC Tag: Tap-to-Pair
Usage environment
Storage Temperature-40°C ~ +70°C
Operating Temperature-40°C ~ +65°C
Humidity5% ~ 95%
Sealing Level and VibrationIP65 and IP67 / MIL-STD-810 Method 514, Procedure I
Firmware/operating system
ProcessorNXP iMX8 Mini Quad Cortex-A53
Memory2GB LP DDR4 RAM / 16GB eMMC Flash
Operating SystemLinux
Internet ServicesDHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP, NTP
Network StackIPv4 and IPv6
SafetyTransport Layer Security Ver 1.2, FIPS 140-2
